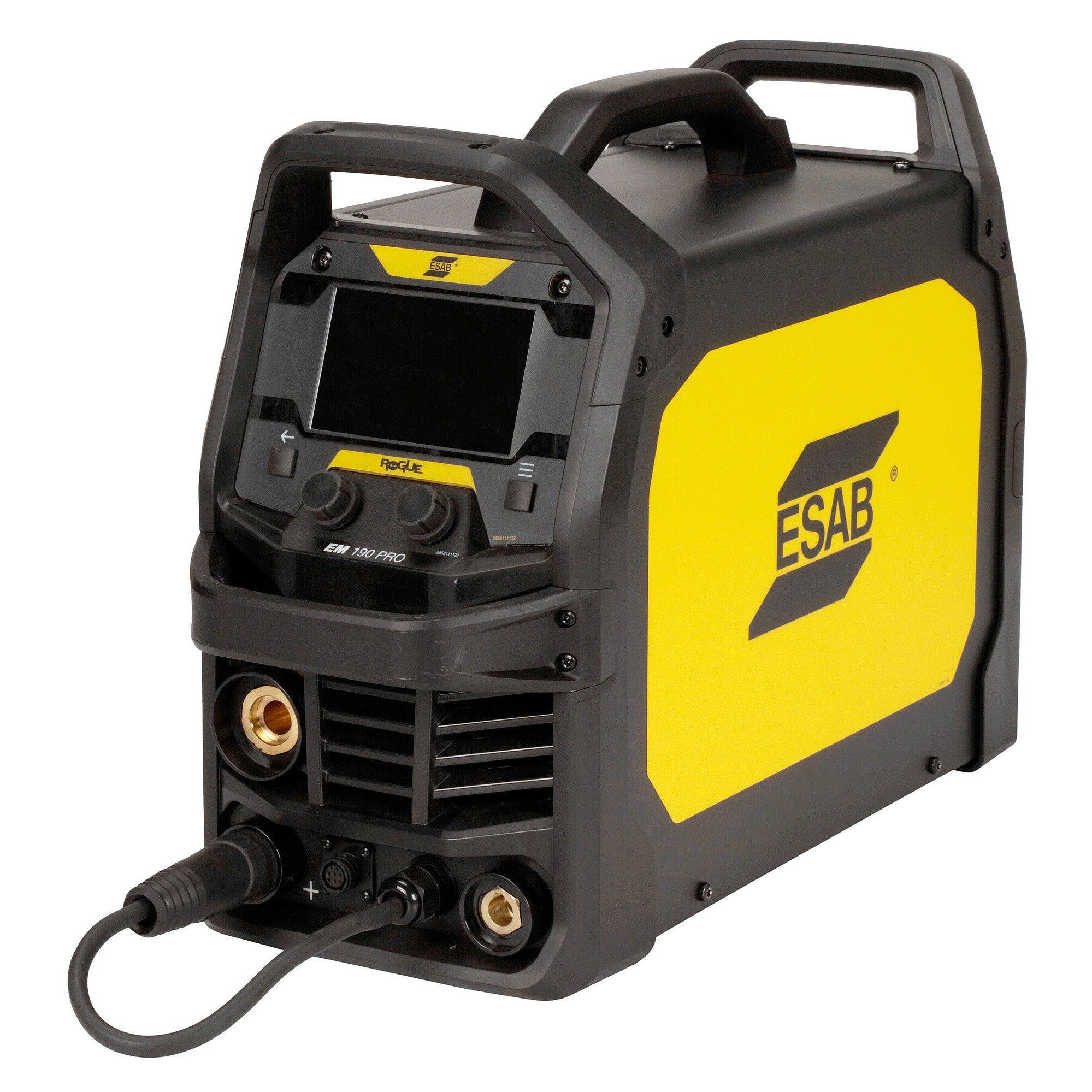

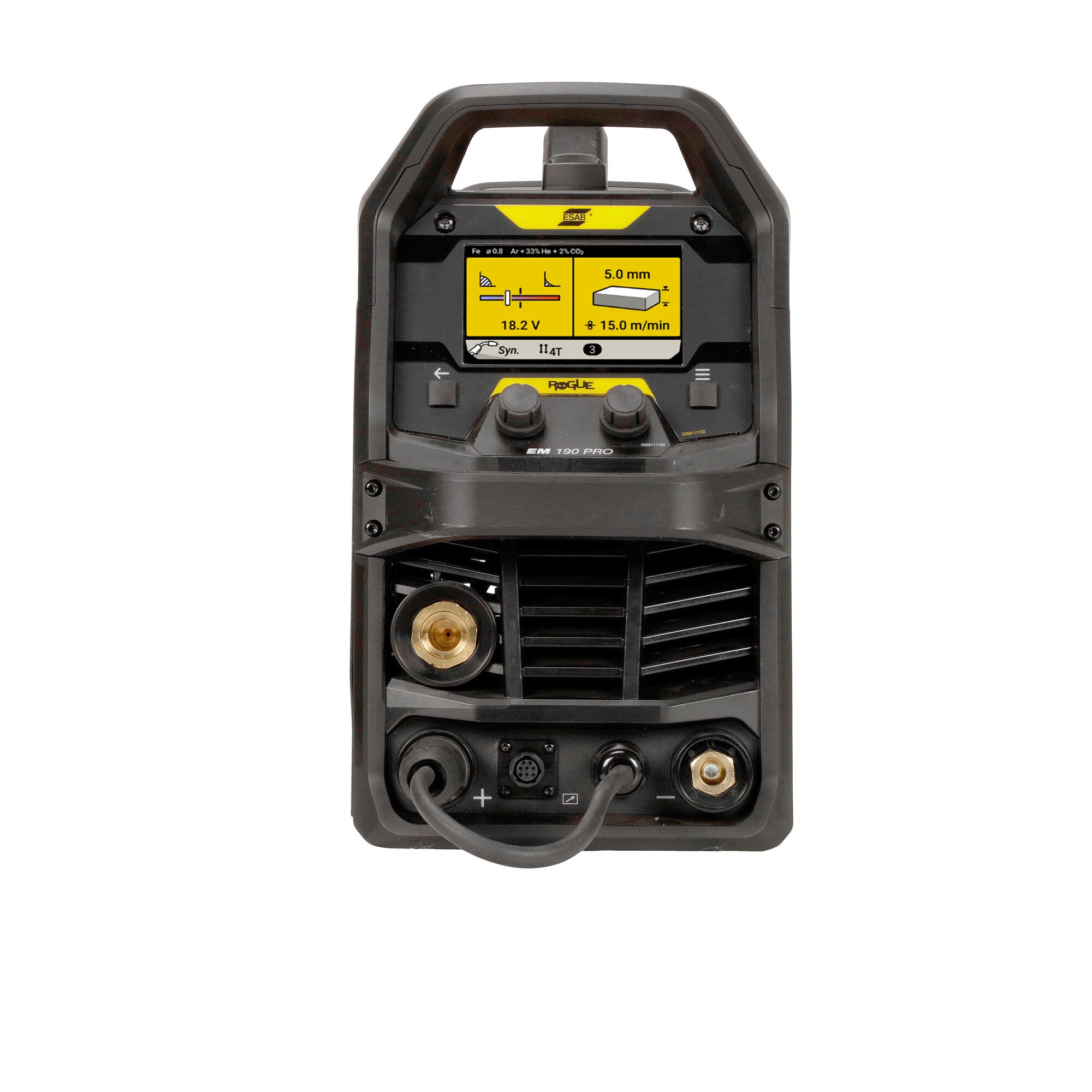

ESAB Rogue EM 190 MIG Welder – 0700301083

The ESAB Rogue EM 190 MIG Welder delivers a 190 Amp output and offers a duty cycle of 30% @ 145A. This system is designed to address all your welding project needs, from light fabrication to repair and maintenance. The system features industrial-grade arc performance and full-featured controls that allow the welder to fine-tune arc characteristics based on the material they are welding. With a weight of only 37.3 lbs, 230V single phase input, and compatibility with 6 kVA generators, this system provides maximum flexibility and portability, both in the shop and in the field. Max plate thickness is 1/4″

Features

• Full feature MIG/MAG machine for Synergic MIG/MAG, Manual MIG/MAG, MIG Brazing, Flux-Cored
• Intuitive 5.0 in TFT screen offers clear views with direct interaction
• Synergic Weld Programs (27) €“ full range of welding parameters, 0.5 €“ 10.0 mm (0.020 €“ 0. 375 in) with single knob control
• Power Factor Correction (PFC) €“ ensures a stable arc, resistant to power fluctuations even while working on long extension cables up to 100 m (328 ft)
• Unique rugged industrial design €“ supporting multiple lift points and cable management
• Arc Dynamics €“ fine tune arc characteristics for a crisp/stiff arc for carbon steel or a smooth/soft arc for stainless steel
• Jobs €“ 10 memory save/recall function
• Spool Gun Ready €“ Rogue automatically configures set up when spool gun is connected
• Multi-language display €“ configure the display to 1 of 29 languages
• Energy Save Mode €“ after 2 minutes of inactivity the unit will enter this state to reduce power consumption.
• IP23S rated for indoor/outdoor use
• 3 Year Warranty

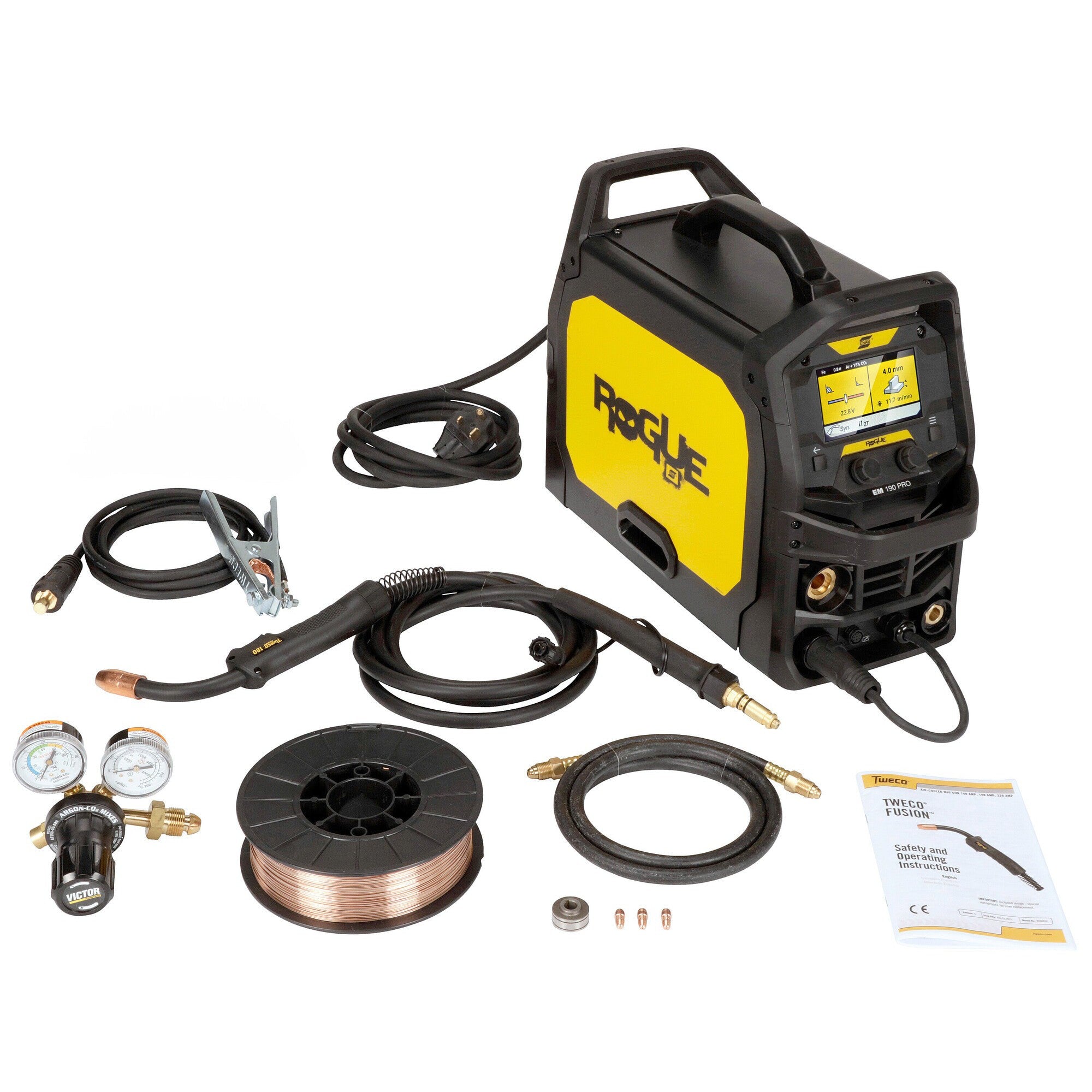

Included with Product

• 190 MIG/MAG Power Source
• Tweco Fusion 180 MIG Torch (10ft)
• Victor Gas Regulator/Flow Gauge
• Single voltage line 230V
• Gas Hose (10ft)
• (2) Feed Rolls (.023/.030) V Fitted & (.030/.035) VK Fitted
• (2) Contact tips: 0.6mm/0.023in., 0.8mm/ 0.030in.
• ESAB OK AristoRod .030 (2.2lb Spool)

Specifications

Click the image below to view the full spec sheet

Informational Video
