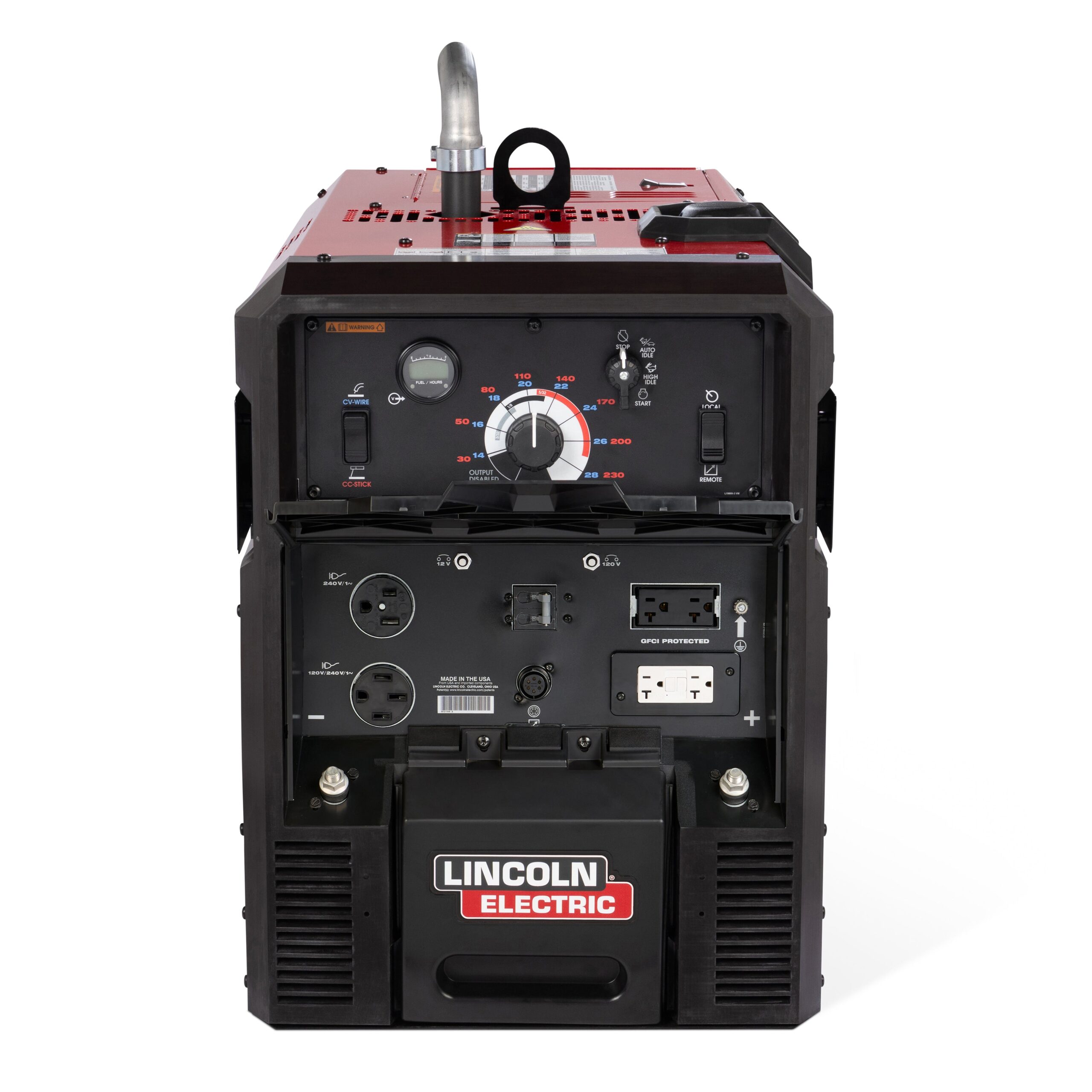

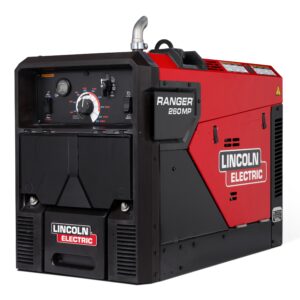

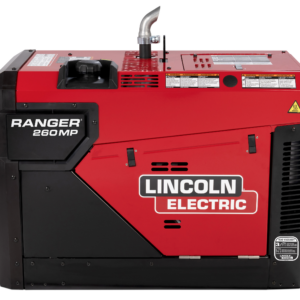

Lincoln Ranger 260MP Engine Driven Welder (Rehlko) – K5937-1

Lincoln Ranger 260MP Engine Driven Welder (Rehlko) – K5937-1

Do More with Less

The Lincoln Ranger 260MP is a 260 amp DC engine driven welder and 10,500 watt AC generator that is 10% smaller and over 100 pounds lighter than legacy Ranger 250 GXT welders. The K5937-1 also runs cooler and quieter than previous models. The 260MP’s smooth DC welding output produces excellent results while welding with various types of DC stick welding electrodes. It is also capable of DC scratch-start TIG welding, as well as MIG and Flux-Cored welding with an OPTIONAL LN-25 series feeder.

The Ranger 260MP produces up to 10,500 peak watts of single-phase AC power. Its compact size makes it ideal for hauling in the back of your pickup truck. Three engine access panels and convenient battery access panel help make maintenance quick and easy. The Rehlko (Kohler) CH730 two-cylinder gasoline engine produces 23.5 horsepower at 3,600 RPM. The Ranger 260MP has an 11 gallon fuel capacity.

Features:

• One-knob, glove-friendly control
  Faster setup with less adjustment on the job

• High-quality multi-process welding
  260 amps of consistent, reliable weld performance across applications

• Clean generator power
  10.5kW safely powers jobsite tools and equipment

• Electronic choke
  Easier starting with less manual adjustment

• Auto-idle
  Reduces noise and fuel use when welding demand drops

• Low-noise operation
  Better for jobsite comfort and communication

• GFCI-protected receptacles
  Added protection when powering jobsite tools

• Remote control switch and 6-pin remote receptacle
  Added flexibility and mobility on the job

• Reduced-weight, jobsite-mobile design
  Easier transport and handling on site

• IP23S-rated enclosure
  Built for durability in tough outdoor conditions

• Rear-engine layout
  Easier access to service points

• Front-facing fuel gauge
  Quick, convenient fuel checks

• Front battery access
  Faster battery service or replacement

Specifications

Click to view the entire spec sheet.
