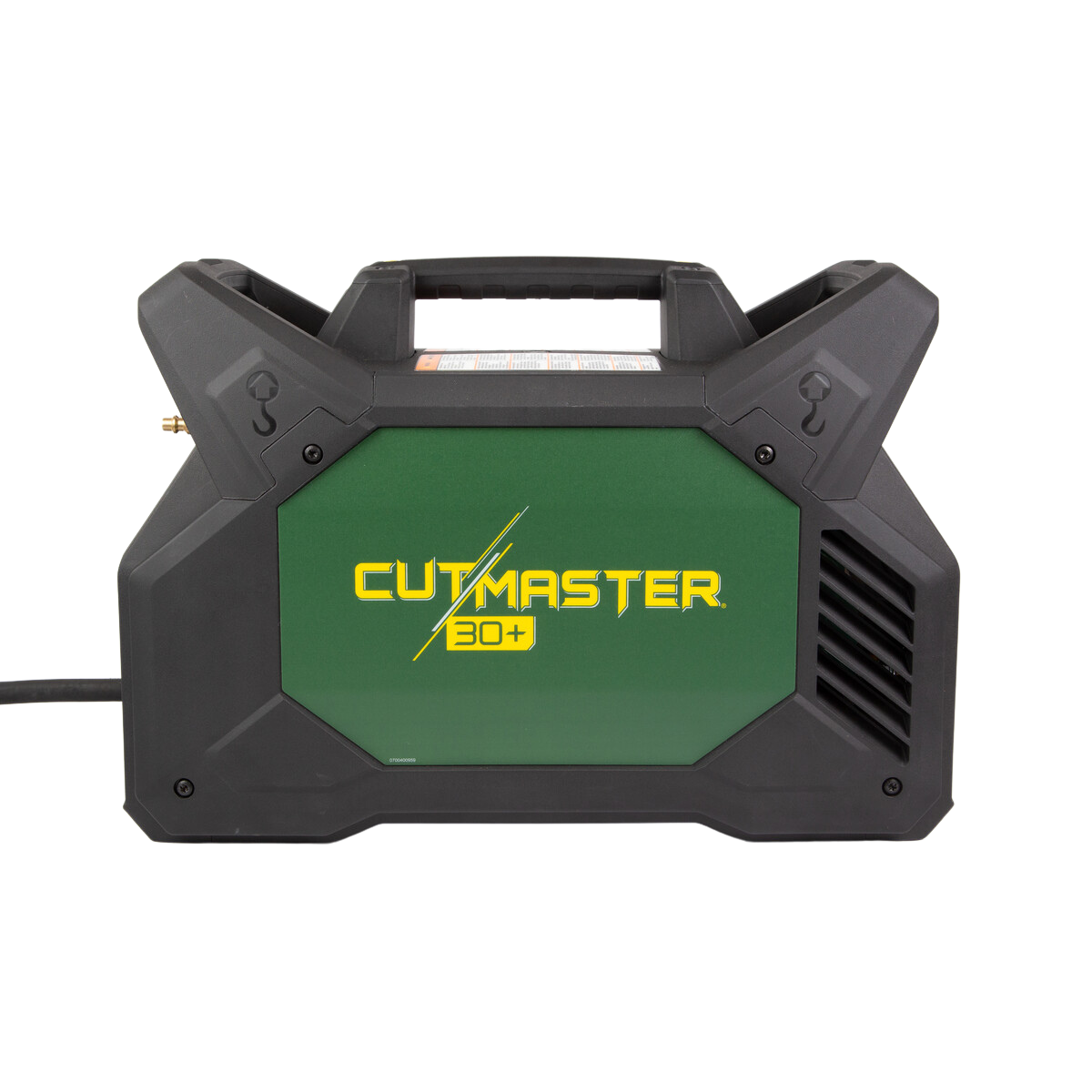

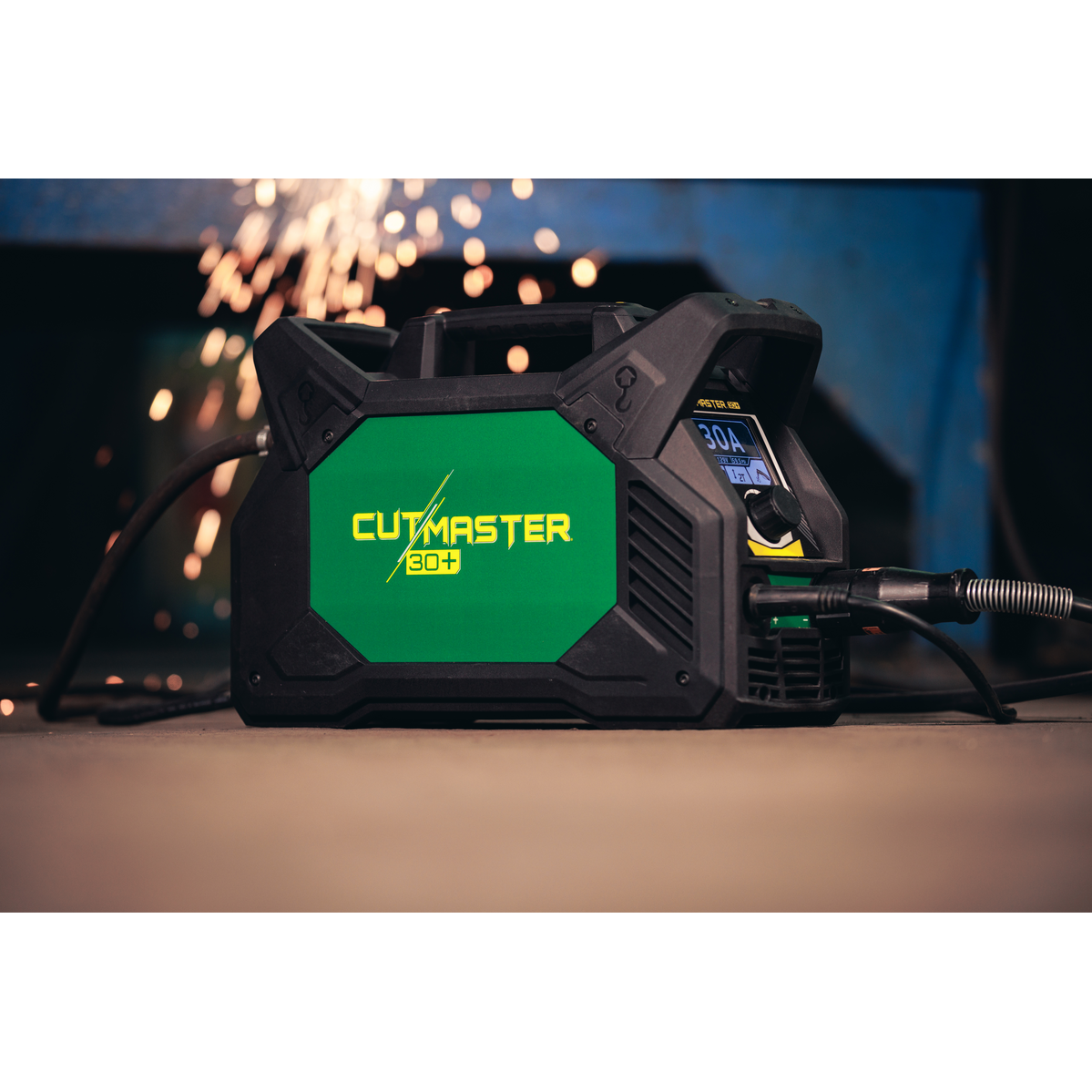

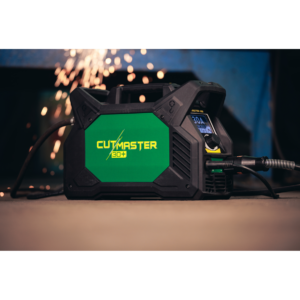

Thermal Dynamics Cutmaster 30+ Plasma Cutter – 1-3000-1

Cutmaster 30+ is the perfect combination of power and portability for hand-held plasma cutting machine. Plus means more, so we’ve added a user-friendly 4.3 in. TFT LCD screen and upgraded features that give you even more control and flexibility to master any cut up to 10 mm (3/8″). Together with the SL60 1Torch, it all adds up to the total plasma cutting package.

Product Features:

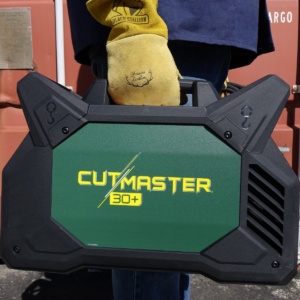

• Portable and durable with three handles and lightweight, industrial all-weather housing
• Bright 4.3in TFT LCD display with glove-friendly adjustment knob simplifies use and provides greater control and flexibility
• Dual input 110-240V, 1 ph power with automatic voltage detection that sets max output amperage
• Comes with industrial SL60 1Torch featuring 2T/4T function, safety trigger lock, and double-tap trigger to conserve bottled air
• Switch between normal and grate cutting modes
• Automatic air pressure detection and post-cut air purge to expand consumable life
• 40% duty cycle @ 30A, 100% @ 20A
• Cutmaster Black Series consumables included for up to 60% longer life
• Industry leading 3-year warranty on power supply and 1-year

Performance

Cutmaster 30+ has a ton of power packed into a small package. The 1Torch allows for 3/8″ cut capacity and the insane 5/8″ sever. Duty cycle of 100% at 20 A is possible now thanks to the new cooling technology. You will be tired before this machine is ready for a break!

This package does include the new black series electrodes which last 60% longer than standard consumables. As for replacements you can get the regular kit or the consumable kit that includes the black series electrodes.

Serious Durability

We put this machine in the industrial category for durability. IP23S rated meaning it is tested to handle all weather and keep performing. ESAB designed this machine to last and they back it with their Iron Clad Pledge and coverage. Plus the unbeatable 4 year warranty

Included with Product

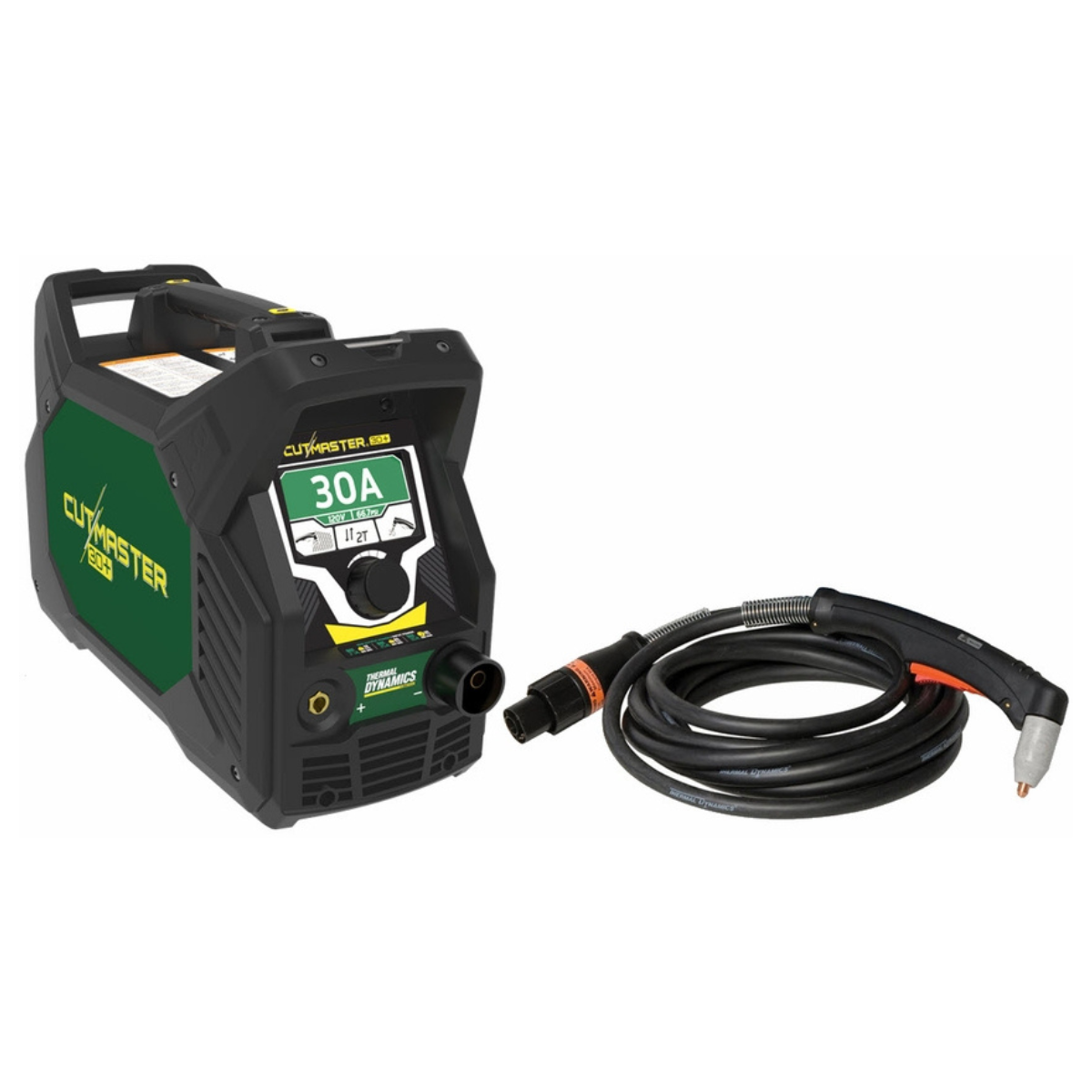

• Cutmaster 30+ plasma cutter
• 16 ft. SL60 1Torch
• Spare parts kit
• 13 ft. work cable with clamp and male dinse connector
• 50 A to 20 A power adapter
• 20 A to 15 A power adapter
• 1/4 in. NPT air fitting with quick connect
• Operator’s manual

Specifications
